The Pure Effect ULTRA-WH-Well is our Latest Advancement in High-Quality Well-Water Filtration for your entire home.  It features our advanced high-capacity/wide-range Radiation & Well Contaminant Removal medias: AntiRad-WH^TM and WellGuard-WH^TM, as well as sediment and wide-range chemical reduction capability, so now all the water in your home can be clean and more refreshing!

For Drinking Water: Due to heavy metal leeching and buildup inside home piping systems, we highly recommend filtering the water again using one of our countertop or undercounter systems for drinking.  This will create a strong level of redundancy and ensure the freshest water taste and brightness.  (Fluoride may be removed near or = to 100% when using our ULTRA and ULTRA-UC drinking water systems in combination with this Whole House System).

PHASE 1: (Chemicals & Sediment) The 1st clear chamber which the water enters contains a premium 5 micron NSF & WQA Certified Coconut Shell Carbon Block for removal of VOC's (Volatile Organic Chemicals, such as oil byproducts) and Agricultural Run-Off (Pesticides/Herbicides/Insecticides), as well as a whole host of other organic chemicals, rust, silt and sediment. By taking on the onslaught of chemicals and sediment first, this workhorse cartridge helps to take the load off and protect the critical Iron/Hydrogen Sulfide and Radiation removal cartridges that follow, this allows for the next 3 phases to have reduced chemical interference and maximum effectiveness in targeting most common well contaminants and radiation.

PHASE 2: (Hydrogen Sulfide & Metals) Next, the water enters the the second chamber, which features our advanced WellGuard-WH^TM Dual Carbon + Patented KDF85 media, consisting of Granular Virgin Coconut Shell Carbon and Advanced Catalytic Carbon for Targeted Radon & Hydrogen Sulfide Gas removal (source of Rotten Egg Smell) as well as a wide spectrum of other chemicals.  The patented layer of KDF85 patented Media helps discourage bacterial growth and fouling, specifically targets iron and other heavy metals and lower oxidation properties of water.

PHASE 3: (Radiation) As the water reaches the final 3rd chamber (3 additional phases within itself) it comes in contact with our proprietary AntiRad-WH cartridge, which features, high-performance combination media for wide-range of radioisotope removal, both positively-charged cationic (cesium, strontium, iodine, etc) and negatively-charged anionic (uranium, plutonium, etc) radioisotopes.

Connection & Component Quality

Note: Must be installed by a licensed plumber. If you're not sure whether your current plumbing configuration will allow for installation/connection of this system, we recommend you first contact a Plumber to verify before ordering.

This system features standard 1" NPT thread female ports which allow you to connect your main cold water service line to the unit. If your service pipe is 3/4" or 1/2", we can provide a "reducer" to adapt for your pipe size. The system comes with a dedicated shut-off valve and a built in pressure gauge, which allows you to monitor water pressure to ensure it does not exceed 75PSI (Maximum unit operating pressure) or when it drops significantly (indicating need to change carbon block).

The filter unit body is made of NSF Certified, BPA-Free, Precision Machined High-Density/Strength Plastics with a double O-ring seal.  We do not cut corners on quality.  By purchasing any of our products, you will also be supporting the US economy, workers and our company.

_____________________________________________________________________________________________________________

Filter Replacement: Every 8 months for a Family of 1-3 / 6 months for a Family of 4-6. See cartridges.

Maintenance Cost: Apx. $57/Month (based on annual filter replacement cost for a 4-6 member household).

Installation Instructions: Click here

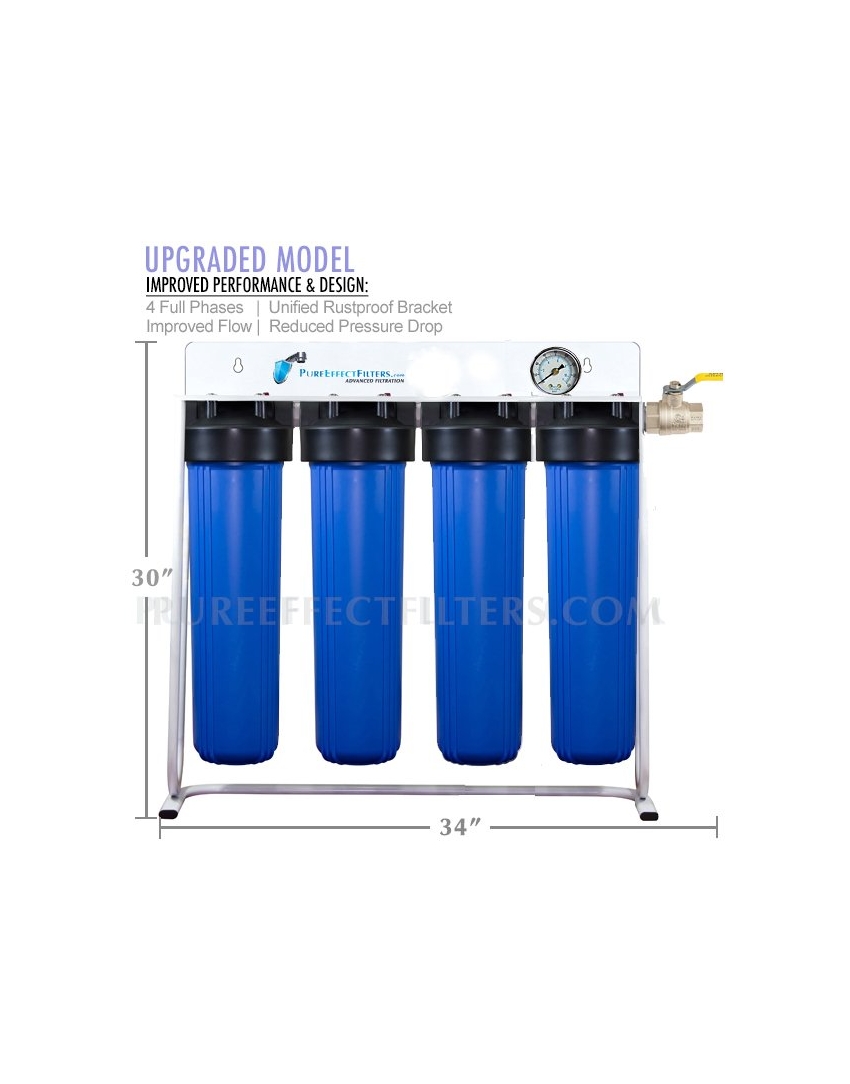

Apx. Unit Dimensions: 27" (Width) x 30" (Height) x 8" (Depth)

Shipping Weight:   60lbs

Operating Weight: 105lbs+ (when filled with water).

Max Flow Rate: Apx. 4 Gallons Per Minute. Max PSI: 75

Warranty: 2 Years
