ADVANCED UV LED MODULE

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

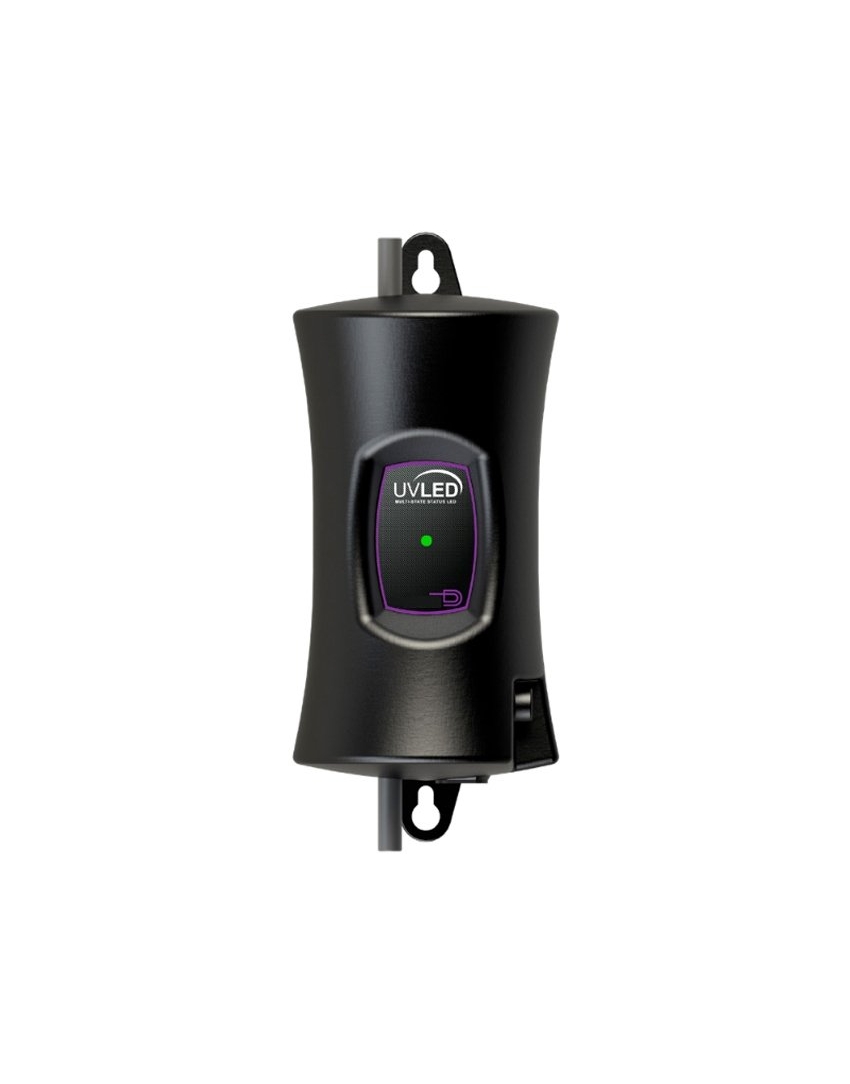

UV LED MODULE | Wide-Range, Chemical-Free Disinfection (For Undercounter Water Filters)

Be the first to review this product

Availability: In-Stock

* Required Fields

Regular Price: $895.00

Temporary Price: $595.00

Add Items to Cart Add to Cart

Overview

Ultraviolet Light Disinfection systems have been fundamentally the same for over 100 years, until now...

Introducing our advanced 2nd Generation LED Disinfection Module.  This is a highly advanced chemical-free, maintenance-free (up to 10 year service life*), super wide-range micro organism disinfection add-on for our undercounter filter systems.

This Module requires a GFI protected power outlet under the sink and comes as an option with our DISINFECT undercounter system; it can also be added to existing undercounter systems where maximum disinfection is desired.



SUPERIOR DISINFECTION TECHNOLOGY:  As the water reaches the final Phase of the filtration process, it passes through this 2nd Generation Disinfection Technology that uses state-of-the-art LED UV-C lights to quickly and effectively destroy viruses, bacteria and many other microorganisms without the use of chemicals.

Ideal for both City and Well water, this LED technology is superior to the standard Glass-Bulb UV systems and has significant advantages:


1. Maintenance-Free* (up to 10 year service life):

   - Nothing to clean.
   - No Glass Sleeve that can break.
   - No Bulbs to Burn out (LEDs aren't affected by on/off cycles).

   - No Annual Bulb replacement. (apx. $400 total savings*).

2. Instant-On Disinfection (no warm-up time).

3. Does not heat the water up.

4. Saves Energy: Turns itself off when filter is not in use.  (uses apx. 15 watts).

5. Intelligent UV Monitoring: Audible/Visual malfunction notification.

6. Safe & Chemical-Free: Uses only Ultraviolet Light

7. High Quality Components


HOW IT WORKS: The LEDs inside the module are fully isolated from being visible to your eye and are instantly activated by the water flow when you turn on your filter.  LEDs emit UV-C type light at a UV intensity dose of apx. 40mJ/cm2. (The optimal parameters to safely and quickly inactivate a very wide range of microorganisms found in water).

DO I NEED THIS FOR CITY WATER?:  City chemical water disinfection processes (chlorine/chloramine) can cause microorganisms to become resistant to these treatments over time.  UV light does not have such an "adaptive" effect and provides an additional level of redundancy against such situations and in cases where there is city disinfection failure or if the city is late to warn you about it.

DO I NEED THIS FOR WELL WATER?:  Well water is not treated/disinfected at all unless you periodically "shock" it with Chlorine or use an Ozonation system, both of which cause undesirable side effects such as: Chlorine and Ozonation chemical byproducts forming in the water, deterioration inside the well and micro-organism disinfection resistance.  Our UV LED Module safely solves all these problems, thereby, saving your valuable time, money and eliminating frustration.

Water Quality Parameters for optimal performance:

1. Hardness: <17ppm
2. Iron & Manganese <0.05ppm
3. Turbidity <0.1 NTU

4. Tannins <0.1ppm

Overall Dimensions: 9.5" Height x 4.1" Depth x 4.2" Width


*Total UV System Service Life is 5000 hours, which can translate up to a 10 year lifespan depending on how often the system is used (turning the water on).
