Installation Instructions



FOR COUNTERTOP MODELS:

3-Step Faucet Connection Verification


Step 1. If your faucet is a "pull out" spray style... please first ensure you can unscrew the aerator (see here) to expose the threads.  *For faucets where you cannot unscrew the aerator with a wrench, an aerator removal tool may be necessary.  Please confirm this with the manufacturer of your faucet.


Step 2. After you unscrew the aerator, measure the diameter of the thread on the faucet, and order the right adapter below if needed:

a). 23.8mm (15/16" Diameter) - Male, Extended Length

b). 20.6mm (13/16" Diameter) - Male, Extended Length

c). 19.0mm (0.75" Diameter) - Female, Chicago Style Faucets

d). 18.5mm (0.72" Diameter) - Male


If you happen to have such a faucet type where the aerator cannot be removed, you may then want to consider our Undercounter Model: ULTRA-UC which comes with it's own dedicated faucet; or if you still wish for the Countertop system, then another option is to change your kitchen faucet to one that has a removable aerator.



Step 3. Our Diverter screws on in place of the aerator and redirects the water to the countertop filter.



Faucet Diverter Valve







INSTALLATION INSTRUCTION MANUALS
(Adobe Reader must be installed on your computer to open and view the PDF Installation Files below.)

- Please click on the system of your choice below -



COUNTERTOP SYSTEMS:

Typically, the User-Friendly installation of the units takes about 15 minutes and requires no special tools.

 COMPACT (Countertop Water Filter) CLASSIC (Countertop Water Filter)   ULTRA (Countertop Filter)          ULTRA-DISINFECT (Countertop Filter)



   UNDERCOUNTER SYSTEMS:

User-Friendly Installation (takes apx. 45 minutes) requires very basic plumbing & GFCI Protected power outlet for the New DISINFECT Model.

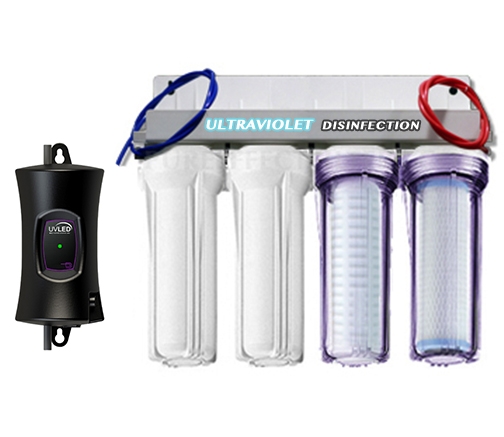

ULTRA-UC (Undercounter water filter)            ULTRA-UC-DISINFECT (Undercounter Disinfection Water Filter)





     WHOLE-HOUSE SYSTEMS:

Installation requires a Licensed and Insured Plumber and can take apx. 3-5 hours.



   CITY-WATER SYSTEM



                     ULTRA-WHC (Whole House City Water Filter)



     WELL-WATER SYSTEM

         ULTRA-WHW (Whole House Well Water Filter)







If you have any additional questions or need help after reviewing the instructions, feel free to Contact Us by:

Email: [email protected] | Phone: 1-888-891-4821  | Live Chat
